High Resilience Layer Cage System Hot Galvanized Low Carbon Steel In Africa Adela
Product Details:
Place of Origin: | Hebei,China |
Brand Name: | BEST |
Certification: | ISO9001, ISO14001, OHSAS18001, CE, SONCAP, PVOC |
Model Number: | BEST |
Payment & Shipping Terms:
Minimum Order Quantity: | 10 sets |
---|---|
Price: | USD 65-200/set |
Packaging Details: | Normal export packing 20ft / 40HQ container |
Delivery Time: | 1-3 weeks |
Payment Terms: | L/C, T/T |
Supply Ability: | 1000 sets/month |
Detail Information |
|||
Product Name: | Battery Cage | Material: | Q235 |
---|---|---|---|
Type: | A Type | Use: | Layers After 10 Weeks |
Size: | 2.2m By 2.4m By 1.65m, 2.2m By 2.4m By 1.95m | Surface Treatment: | Hot Galvanized, Cold Galvanized |
Warranty: | 5 Years | Lifespan: | 15-20 Years |
Cage Structure: | Mesh, Frame,feeding System, Drinking System | Key Selling Points: | Battery Cage, Automatic Drinking System, Layer Cage |
High Light: | high resilience battery cage poultry farming,hot galvanized layer cage system,low carbon steel layer cage system |
Product Description
High Resilience Hot Galvanized Low Carbon Steel Battery Cage For Layers In Africa Adela
Battery cage for layers information
The material is low-carbon steel, Q235, chicken cage body strong, moderate strength, cage net resilience, improve chicken comfort, reduce chicken mortality, reduce the rate of broken eggs. The cage have cold galvanized and hot galvanized surface treatment, according to your budget and your country weather choose the cage
Parameter table of battery cage for layers
Material | Low carbon steel |
Type | A type |
Size |
2m by 1.9m by 1.45n for 96 birds capacity 2.2m by 2.4n by 1.65m for 120 birds capacity 2m by 2.4m by 1.85m for 128 birds capacity 2.2m by 2.4m by 1.95m for 160 birds capacity |
Surface treatment |
Hot galvanized Cold galvanized |
Warranty |
Cold galvanized for 1 year Hot galvanized for 5 year |
Use | Layers after 10 weeks |
Cage structure | Mesh, frame, feeding system, drinking system |
Key selling points | Battery cage, automatic drinking system, layer cage |
Lifespan | 15-20 years |
Feeding system | Automatic feeding system |
Package | Install in client farm |
Manufacturing technique
The low-carbon steel wire firstly cut difference length according to the wire length required for each part of the chicken cage, then the bottom mesh be welded by the machine, and other part mesh be weld by worker, after forming the mesh, remove the excess wire and burrs around the mesh to make the surface smooth, then flat sheet bending, forming a net and front net, flat bottom mesh fold out the egg screen, finally do the surface treatment for the hot galvanized cage or cold galvanized cage. This way make the mesh is strong, will use longer time then use the galvanized wire make mesh directly
Advantage of using the battery cage for layers

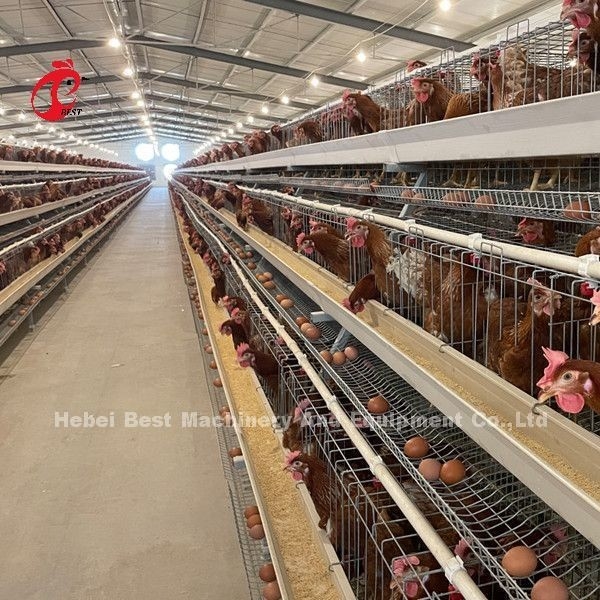

1. The chicken cage consists of 6 pieces mesh and frame, one mesh have 4 cells, one cell hold 4 birds, farmer could observe every birds easily, know their health timely, separate sick chickens from healthy ones in time
2. Cage include the egg way, after chicken lay eggs all eggs will be collected in the egg way, worker easy pick up and also protects the integrity of the egg
3. Easy to clean the manure, could use the machine clean the manure directly, save worker do it and keep the farm clean, reduce the smell in the farm
