Fully Automatic 4 Tier Battery Cage System 160 Capacity For Chicken Poultry Farm Doris
Product Details:
| Place of Origin: | China |
| Brand Name: | BEST |
| Certification: | ISO9001, ISO14001, OHSAS18001, CE, SONCAP, PVOC |
| Model Number: | A or H type layer battery cage system |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 65-200/set |
| Packaging Details: | wooden box, pallet or full container no package |
| Delivery Time: | 5-14 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Set/Month |
|
Detail Information |
|||
| Product Name: | Layer Battery Cage System | Surface Treatment: | Electrostatic Spray |
|---|---|---|---|
| Capacity: | 160 Birds | Core Components: | Cage Mesh And Cage Frame |
| Each Tier: | 5cells Or 5 Doors | Life Time: | 8 - 25 Years |
| Wire Diameter Thickness: | 2.4mm To 3.8mm | Cage Frame Type: | Angle Iron Or U Shaped Stand |
| Feeder Trough Color: | New Material White | Drinker Type: | Stainless Steel Nipple |
| High Light: | 4 tier battery cage system,160 capacity battery cage system,poultry management automated battery cage system |
||
Product Description
Fully Automatic Layer Battery Cage System 4 Tier 160 Capacity Cage For Chicken Poultry Farm Doris
Product description

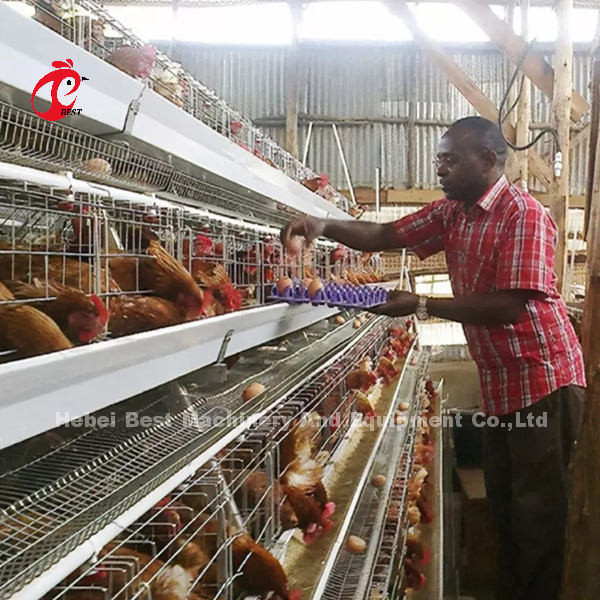

A type 4 tier 160 capacity layer cage always used in fully automatic chicken farm. Hot sale in Ghana, Zambia, Uganda, South Africa, Zimbabwe, Tanzania. The cage with hot dipped galvanized material, automatic drinking system with nipple drinker. When chicken touch nipples, they can drink clean water freely. When birds mouth not touch the nipples, the water stopped. The feeding hopper system can walk through orbit and easily do chicken feeds. And the fully automatic egg collection system save much labour cost and energy. The cage lifespan is over 20 years. This type cage with best quality, suit for big scale farm and long investment
A type 4 tier 160 capacity layer cage always used in fully automatic chicken farm. Hot sale in Ghana, Zambia, Uganda, South Africa, Zimbabwe, Tanzania. The cage with hot dipped galvanized material, automatic drinking system with nipple drinker. When chicken touch nipples, they can drink clean water freely. When birds mouth not touch the nipples, the water stopped. The feeding hopper system can walk through orbit and easily do chicken feeds. And the fully automatic egg collection system save much labour cost and energy. The cage lifespan is over 20 years. This type cage with best quality, suit for big scale farm and long investment
Layer battery cage system parameter
| Cage type | A type layer battery cage system |
| Capacity | 160 chicken |
| Size | 2.2 meters by 2.4 meters by 1.95 meters |
| Cell size | 38cm deep, 43cm long, front height 38cm, rear height 34cm |
| Each tier | 5 cells or doors |
| Cage surface treatment | cold galvanized or hot dipped galvanized |
| Customized broiler cage | chicken cages can be customized |
| Feeder trough color | white or green with new material |
| Cage door type | sliding door or lifting door |
| Cage package type | wooden box, pallet or full container no package |
| Cage fittings | feeding trough, nipple drinker, water pipe, water tank and so on |
| Cage installation | supply installation tools and instructions or video |
What are the design drawings and farm planning of 20,000 fully automatic farms
1. Layout of chicken cage farm: 4 rows, 42 sets of hot dipped galvanized egg chicken coops in each row
2. Chicken house area: 100 meters long, 17 meters wide and 3.5 meters high
3. The distance between the chicken cages is 1.48m, and the space reserved is provided for feeding by the feeder and walking by workers
The distance between the chicken cage and the front and rear walls is 3.8m. The space reserved is provided for the automatic egg picking machine. Workers pick up eggs and place eggs
4. Suggestions on farm location: in the nearby suburbs, remote villages or urban remote forests, the price is cheap and the farm has good ventilation effect
5. Layer battery cage choose: A type 4 tier layer chicken cage. The cage whole size is 2.2 meters long, 2.4 meters width, 1.95 meters high. Each unit can contain 160 layers
1. Layout of chicken cage farm: 4 rows, 42 sets of hot dipped galvanized egg chicken coops in each row
2. Chicken house area: 100 meters long, 17 meters wide and 3.5 meters high
3. The distance between the chicken cages is 1.48m, and the space reserved is provided for feeding by the feeder and walking by workers
The distance between the chicken cage and the front and rear walls is 3.8m. The space reserved is provided for the automatic egg picking machine. Workers pick up eggs and place eggs
4. Suggestions on farm location: in the nearby suburbs, remote villages or urban remote forests, the price is cheap and the farm has good ventilation effect
5. Layer battery cage choose: A type 4 tier layer chicken cage. The cage whole size is 2.2 meters long, 2.4 meters width, 1.95 meters high. Each unit can contain 160 layers
