Hot Galvanized 20 Years Lifespan Full Automatic Feeding Manure Cleaning And Egg Collection System Cage Sell Adela

Product Description

Hot Galvanized 20 Years Lifespan Full Automatic Feeding Drinking Manure Cleaning And Egg Collection System Cage For Layers Adela

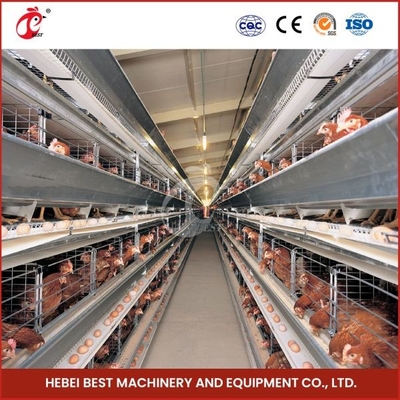

What is automatic cage system
1) Now more and more farmers abandon the traditional flat farming mode and use cages instead. With the development of technology, fully automated poultry equipment is favored by more and more farmers, especially in large-scale farms
2) The fully automated equipment include the cage, feeding system, egg collection system, manure cleaning system and the environment system. These machine together make the farm system automated. Also according to your require do the design for the machine. Like have farmer only need manure cleaning machine, or only need feeding machine, we all could do for you

Equipment details parameter

Full automatic system details

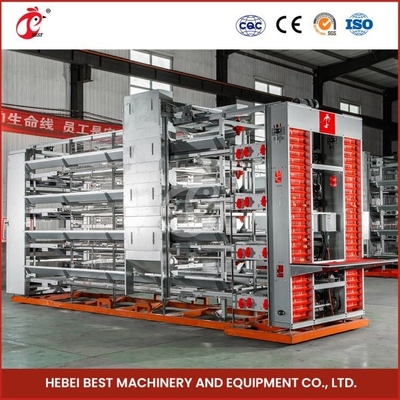

1. Cage and frame
1) Punching from the hot dip galvanized steel panels, zinc 275g/sq.m, no welding, all fixed by screws
2) Feeding through: galvanized steel
3) Drinking system: including squre pipes, nipples, regulators, drip cups, steer wires and installation accessories

2. Automatic feeding system
1) Feeding trolley, material is hot dip galvanized steel
2) Feed conveying auger pipe material: PPR, diameter 90mm
3) Feed silo: 5t to 30t can be choosing
4) It is combined with feed hopper, hopper frame and hopper track. The feed is stored in the silo outside chicken house, the feed is distributed automatically to the feed hoppers from the feed silos by the spiral augers installed in the steel pipe, feeding hoppers move and drop the feed from the beginning to the end of chicken house

3. Automatic manure removing system
1) The manure-supporting plate of the automatic belt type manure cleaning machine is installed under each layer of chicken cages. When the machine is started, the motor reducer drives the automatic rollers of each layer to work through the chain, and friction occurs under the extrusion of the forced roller and the automatic roller. Force, the dynamic bearing manure belt moves along the length of the cage group, conveys the chicken manure to one end, and is scraped off by the scraper set at the end to complete the manure cleaning work
2) Horizontal transport manure device: transport the manure from house to outside

4. Egg collection system
It has the function of preventing the eggs from falling and breaking, which can reduce the expenditure of manpower and material resources. It is used in large-scale chicken farms. Automatic egg collection system includes introduction device, egg picking device, export device, buffer device, conveying device, sprocket gear and long drop chain. The motor 0.4KW, 50HZ, 380V

Company introduce
Hebei Best Machinery And Equipment Co.,ltd, 100 workers, 30 machines, numerical control integration, 200 sets of daily output
Our service are from design schemes of poultry farm project, product introduction, offer quotation, delivery, installation instruction, equipment maintenance, to farm instruction and so on
20 years poultry equipment research and development and manufacturing with supporting of advanced German production technology
Our team is ready to service you 24 hours online
