Product Description

Manure scraper removal machine for chicken farm fecal cleaning Doris

1. Application
It is used for raising chickens and broiler in battery cages, installing them on the ground and completing the manure remval work
Customer called the machine manure removal machine ,manure scraper machine or automatic cleaning machine or automatic cleaning system

2. Manure removal machine 3 types used in chicken farm

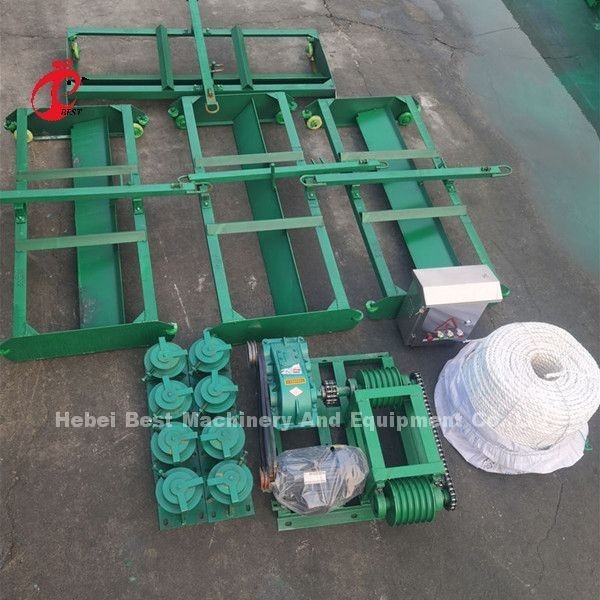

Manure removal machine with 3 scrapers -one motor control 3 scrapers and work for 3 row/lines
1) motor power 3kw,reduction gears and pedestal
2) rope 400 metres
3) wheels 8
4) scrapers 3 sets(the width is according to the pit width 2.1/2.2 metres,20cm less than cage widtn,10cm for each side)
5) one control box
Manure removal machine with 2 scrapers -one motor control 2 scrapers and work for 2 row/lines

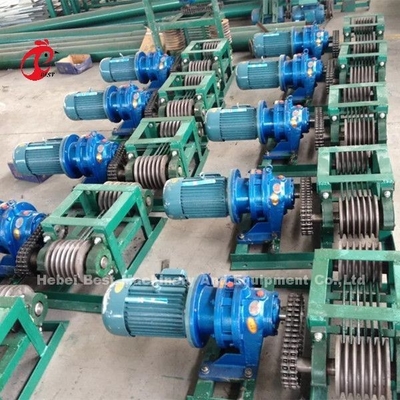

1) motor power 3kw,reduction gears and pedestal,pure copper three asynchronous motors.strong power,long-lasting
2) rope 200 metres
3) wheels 4 ,thick chain can adjust,thick chain,hardly to loose and fall,Loose and tight can adjust,long-lasting

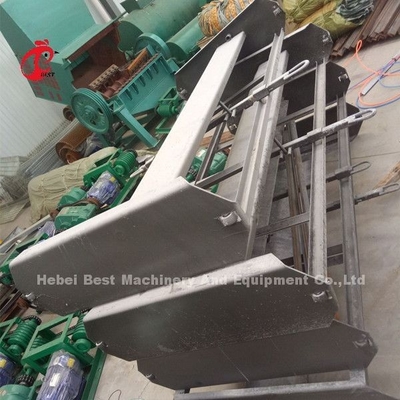

4) scrapers 2 sets:High quality, pure iron, solid.
5) one control box,Thicken bearing, heavy load,lengthen lifespan,durable

Manure removal machine with 1 scrapers -one motor control 1 scrapers and work for 1 row/lines
1) motor power 3kw,reduction gears and pedestal
2) rope 100 metres
3) wheels 2
4) scrapers 1 sets
5) one control box

3. Working principle

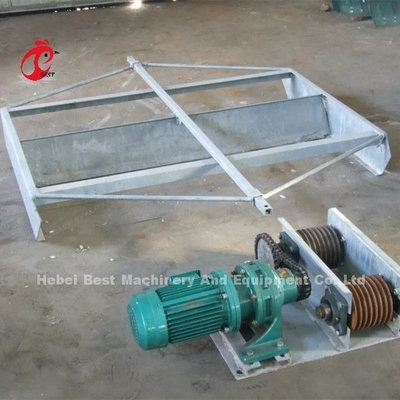

Reducer output shaft through the chain or belt, the power to the main drive wheel, driving wheel and traction rope friction do after tensioning traction, drive the scraper movement back and forth, scraper, crescent slider on the scraper brush to automatic drop, return automatically lift is added to with the customer product introduction?) Speed: 8-10 m/min


4. Advantage

1) It will create an ideal environment for the living of the birds onside the poultry farm with the complete and safe removal of manure that would pollute the environment onside your poultry
2) At the collection process of the manure, those are collected in such an organized way that you can easily make the maximum use of the chicken excrement.
3) You can reduce the cost and labor intensity, make good money by using the excrement as fertilizer, increase economic efficiency and effectively increase the egg and meat production of your poultry farm

5. Most important design of scaper machine is floor design

1) customers who want to order scraper machine, we should confirm with them about the width of the manure pit,marke it in the order sheet
2) we make the dimension in feet or meters according to customer’s required
3) Many farms do not have three - phase electricity. This machine can be used with two - phase machine, since the two-phase motor is only 4)2KW even for the national standard, And the power is much weaker than the three-phase motor. So when the dung is too long (such as the length more than 6, 70 meters) and wide (such as poultry shed manure achieved more than 2 meters) of the farms in the use of two phase motor driven nightsoil machine, should be careful to take an examination of About the motor power problem, three scrapers should be consider the pthree-phase
4) We will send English installation instructions and video.If you are in Nigeria. We can send professional engineer to customer farm direclty
5) We can help customer design dung pit drawings freely for chicken farm
Advice customer pit width match with chicken cage width size.Customer can build pit 0.3-0.5meters depth and length against house length.And chicken house dung pit width can be 1.8-2.2meters to match with chicken cages using

6. Maintenance and service

1) Before use, the cycloid pin wheel reducer adds 30# oil to the middle of the oil window , The turbine reducer adds 50# engine oil 1.2-1.5 litres, and the oil is changed once every three months
2) The dung scrapers is cleaned 2-3 times a day, if dung pit some long ,need add the clean times ,
3) Check the lubricating oil once a week during normal operation. Should be added when insufficient. Lubricate the drive chain once a week
4) Check the chain tightness every month.Drop 3-5 mm in the middle of the chain. Loosen loosen tighten bolt adjustment, tighten bolt and top wire
5) Check the scraping board every week to clean up the waste
