144 Birds Capacity H Type Layer Cage For Commercial Chicken Mia
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | BEST |
| Certification: | ISO9001, ISO14001, OHSAS18001, CE, SONCAP, PVOC |
| Model Number: | A/H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 65-200/set |
| Packaging Details: | Normal export packing 20ft / 40HQ container |
| Delivery Time: | 5-8 work days |
| Payment Terms: | /C, T/TL |
| Supply Ability: | 10000 Set/Month |
|
Detail Information |
|||
| Place Of Origin: | Hebei, China | Brand Name: | BEST |
|---|---|---|---|
| Model Number: | A Or H Type Of Poultry Cage | Applicable Industries: | Poultry Farms |
| Marketing Type: | New Product | Capacity: | 128 Birds |
| Surface Treatment: | Galvanized | Weight: | 100 KG |
| Key Words: | H Type Cage, Chicken Cage | Life Time: | 15 - 20 Years |
| High Light: | Widely Used Poultry Layer Cage,Iron Wire Poultry Layer Cage,Commercial Chicken layer hen cage |
||
Product Description

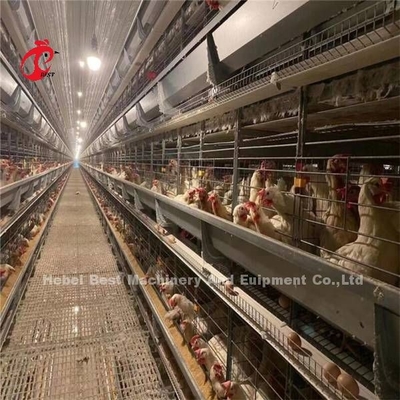

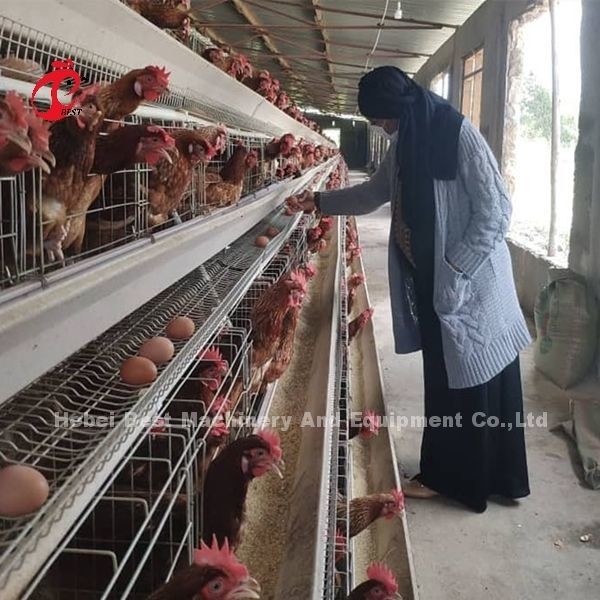

Automatic Poultry Layer Cage Widely Used Poultry Farming Chicken Cage Mia
1. Material of cage mesh: hot deep galvanized iron wire
Cage box: five kinds of meshes are combined together, back and top mesh, top and front mesh, bottom mesh, middle part mesh, door mesh
Cage frame: pieces of square pipes or angle bars in different length to combine and supporting cage boxes and other fittings
Feeding trough: in white PVC material with stabilizing additive
Nipple drinker: material is degradable plastics, 316 stainless steel ball and touching bar for chicken month
Water pipe and tank: degradable plastics
Installation accessories: connector of water pipe and feeding trough , cage box clips, cage frame nuts and so on
2. Poultry Cage list
| Product name | A type | H type cage |
| Material | Hot dip galvanized | Hot dip galvanized |
| Tiers | 3/4 tiers | 3/4/5/6 tiers |
| Capacity | 120/160 birds /set | 180/240/300/360/544 Birds/Set |
| Size | 430mm*380mm | 430mm*600mm |
| Area of per Chicken | 408.5 | 450 |
| Raising Quantity | > 15000 | >30000 |
| Supporting System | Automatic Egg Collection System,Automatic Feeding System,Automatic Drinking System, Automatic Manure Cleaning System,Enviroment Control System. | |
3. System Advantage
► Feeding system
1) The main feed line can work automatically. Feed will be dispensed evenly in the feed trough
2) V-shaped feed trough may avoid “feed left at edge” to prevent the feed from accumulating and mildewing
3) The magnetic end device can effectively clean the accumulated feed to avoid mildew, ensure birds healthy and save labour
4) Proven design and stable running can prevent maintenance for the most part
► Drinking system
1) Water front kit: It includes Dosatron medicine doser, high quality filter, pressure-control valve, and electronic water meter to record water consumption
2) Pressure regulator: Water pressure in the drinking line can be adjusted by turning the knob under the regulator. When you want to rinse the drinking line, just turn to “flush” position, then water will be forced through the pipe at high pressure
3) Drinking line: Layer cage system is equipped with a V-shaped water trough. The nipple drinker is double-sealing, which will ensure no water leakage
4) Optional alarm system will give an alarm whenever there is no water at the end of drinking line
5) Water flow-rate of nipple drinker is 40-50ml/min, which can meet the drinking demand of layers at the same tie keep manure dry
► Automatic egg collecting system
1) High quality PP egg belt (woven or perforated belt), low extension rate, little contraction or expansion caused by changing temperature
2) Optional egg saving wire ensures that eggs will roll smoothly to the longitudinal egg belt. Belt moving time and interval can be adjusted as per customer’s requirements
3) Proven design ensures stable running, maintenance-free and lower broken egg ratio.
4) Transversal egg conveying system can be chosen. All eggs will be delivered to outside of poultry house. This can save labor cost and reduce the contact of workers with birds.Our central egg collecting system can work with capacity up to 60000 egg/hour
► Manure removal system in cage
1) High efficiency motor ensures the belt transmission stable and reliable
2) Rubber-coated driving roller and partial rubber-coated tension-roller make sure that manure will be cleared away from belt and no slippery of belt
3) The manure scraper is a little soft, effectively protects the conveyor belt. Double scraper ensures the cleaning effect of the conveyor belt. PU material, replaceable, with long service life
4) The two sides of conveyor belt support is a little higher, prevent the manure from spilling out.
5) High precision products can ensure that manure belt will not deviate from the right position
4. FAQ
1) What services do you provide?
We can provide free total solution, include farm construction, feeding and management, sanitation and epidemic prevention, classic case and etc.
2) How many years it can use?
15-20 years long service life
3) How much per set cage?
Different model,price is different.In addition,there are other complement equipments.Need know how many birds you want to rear,then we can give you a specific price list with house size
4) Who is in charge of install ?
Our company will send two engineers to your country to guide installation and provide training
5) How long is the warrenty?
We guarantee one year warranty and lifetime maintenance
