Mixer And Grinder Machine Of Feed Mill For Feeds Production For Chicken Farm Doris
Product Details:
| Place of Origin: | China |
| Brand Name: | BEST |
| Certification: | ISO9001, ISO14001, OHSAS18001, CE, SONCAP, PVOC |
| Model Number: | BEST-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 700-4000/set |
| Packaging Details: | Normal export packing 20ft / 40HQ container |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Set/Month |
|
Detail Information |
|||
| Product Name: | Feed Mill Machine | Life Time: | 15 Years |
|---|---|---|---|
| Applicable Industries: | Poultry Farms For Feeds Production | Marketing Type: | New Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Application: | Commercial Chicken | Production Lead Time: | Depending On The Order Quantity. Normally About 10 Days For 20ft Container, 15 Days For A 40ft Container. |
| Total Power: | 10.5kw | Motor: | 2 Motors Included |
| High Light: | Triangle Belt Feed Processing System,Feed Processing System 3kw 380v,Mixer Powder Feeds Production |
||
Product Description

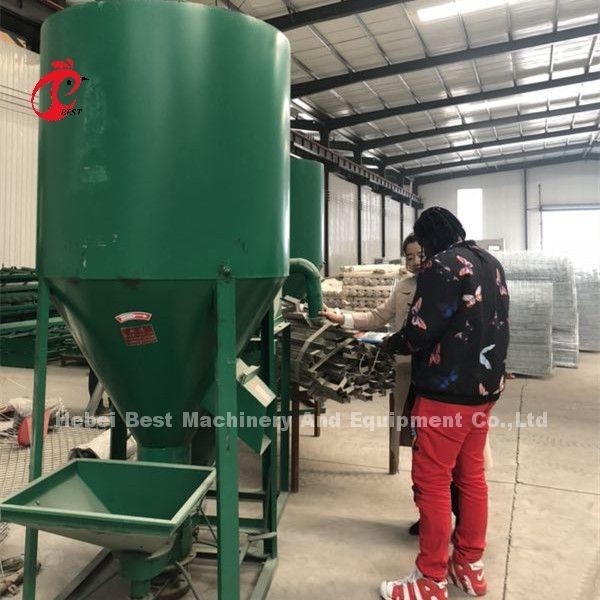

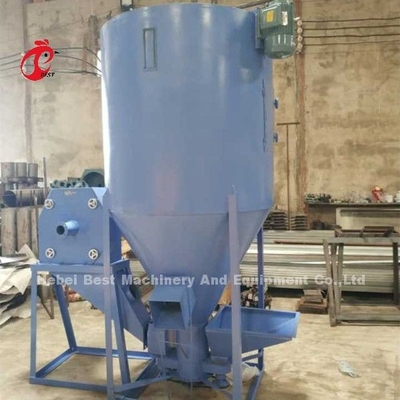

Feed mill machine with mixer and grinder function for powder feeds production Doris
1. What is feed mill?
Feed mill machine also called grinder and mixer,scrusher and mixer machine.The machine used in feeds production.And powder feeds for chicken ,ducks, rabbits, pigs, cows, horses and fish etc
The raw material soybean, soybean meal, corn, fish meal, amino acid, miscellaneous meal, whey powder, oil, meat and bone powder, grain, feed additive and so on
There are two parts of feed mill, one is crushing machine, the other one is mixing machine. Crusher and mixer are together, after material finish crushing it will automatically flow to mixer, then material flow out and finish processing
Over 5000 chicken farm ,almost customer choose to use feed mill machine .And produce chicken feeds by themselve to save feeds cost. Because many farmers mentioned the feeds in market with high price
2. Specification of the feed mill
Motor one year warranty and freely change in 5 years, pure copper wire motor with high quality
| Capacity per hour | Power | Machine whole size(L*W*H) |
| 0.5 ton | Grinder and blender | 1.7mx1.05mx2.4m |
| 0.75 ton | Grinder and blender | 2.35mx1.16mx2.6m |
| 1ton | Grinder 7.5kw, blender 3kw 380v | 2mx1.3mx2.8m |
| 2tons | Grinder 11kw, blender 4kw 380v | 2.2mx1.6mx3.2m |
3. Advantage
longer lifespan (most customers has used it for more than 10 years)
Low fault rate: it runs smoothly, the motor is made by Japan-tech
High working effiency: it makes workers high effiency.
Quality gurantee: motors can be changed freely in 15 months if broken down
4. Accessories and vulnerable parts
1) control cabinet 1 set
2) hosts 1 unit
3) accessories plastic bags 1 set
4) pulverizer suction pipe 1 piece
5) shredder cover with 1 bend
6) triangle belt 2 long and 2 short (installed on the machine ,please check), vulnerable parts, 2-3 years change
7) auxiliary hopper 1 set
8) screen 2 tablets (different holes, one for chicken feed the other for pig feed)
5. Working principle
It is self-priming, the wind mill feed, corn grain, soybean, wheat and other grains feed into the crushing cavity, and then crushing mixing work, inlet on the top of the grinder, can match with various forms of feeding structure, hammer for symmetry; feed machine and the material into the crushing chamber, the high-speed rotation of the hammer blow and sieve plate under the action of friction, material is crushed gradually, and the centrifugal force and flow, through the bottom discharge outlet
The operation is very simple, the material is put into the "suction pit", automatically inhaled, after smashing, automatically into the mixing bucket, forming powder feeds
6. Package and Delivery
7. Precautions for early use and later maintenance
1) In order to avoid accidents in transportation, loading and unloading and other links of the machine, check whether the bolts and nuts at all parts are loose, flat teeth, round teeth and spindle nuts are loose before use. Turn the pulley by hand and check the machine for collision
2) Whether the machine rotates flexibly and whether there are sundries in the machine. The operation can be started only after the machine is started and idled for 3 minutes without abnormalities
3) When working, pay attention to remove the sundries in the materials. It is strictly forbidden to enter the machine with iron, stone and other objects, so as not to damage the machine and hurt people
4) The receiving cloth bag shall be more than 4m long and 0.6m in diameter. The cloth shall not be too dense. The material shall be discharged in time during use to ensure sufficient air permeability of the cloth bag
5) Feed evenly and pay attention to the load degree of power to avoid choking. When crushing particles, the feeding amount can be adjusted by the plate extractor.
6) Hammer blade: when the wear of one corner affects the working efficiency, the reverse side of the hammer blade can be turned around (four groups can be adjusted together at a time to avoid rotor imbalance). All the hammer blades should be replaced
7) Grease shall be added before starting up every day, and the bearing condition shall be checked after 500 hours of use. When installing the screen, the side with burr shall be installed on it. According to the fineness of crushed materials, screen pieces with different diameter screen holes are selected
