Automatic H Type Meat Broiler Chicken Cage 84 Birds Poultry Farm Equipment Mia
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | BEST |
| Certification: | ISO9001, ISO14001, OHSAS18001, CE, SONCAP, PVOC |
| Model Number: | H-84 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 sets |
|---|---|
| Price: | usd 60-200 per set |
| Packaging Details: | Normal export packing 20ft / 40HQ container |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000 sets per week |
|
Detail Information |
|||
| Production Name: | Broiler Chicken Cage | Size: | 1.4m By 1m By 1.9m |
|---|---|---|---|
| Apply To: | Broiler Meat Farm | Tiers: | 3/4 Tiers |
| Surface Treatment: | Hot Galvanized | Lifespan: | 25 Years |
| Wire Diameter: | 2.8-3.5m | Warrity: | 1 Year |
| Key Sell Points: | Broilers, Meat | Type: | H Type Full Automatic Cage |
| High Light: | Broiler Chicken Cage 84 birds,Automatic Broiler Cage 84 birds,Broiler Chicken Cage 1.4m |
||
Product Description
Automatic H Type Poultry Farm Equipment Meat Broiler Chicken Cage For Sale Mia

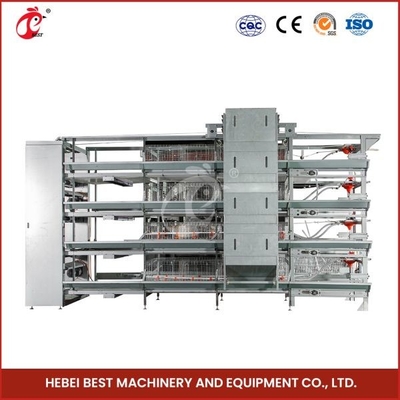

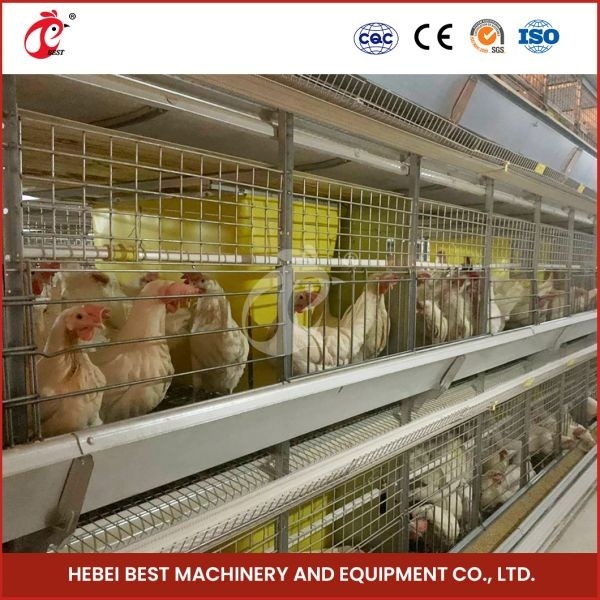

Full automatic broiler cage system description
The broiler cage system is mainly used for rearing broilers, one day old broiler chicks can be directly put into the cage and raised to 45 days old, cage is unnecessarily changed during their growing. Material of cage and frame is hot dip galvanized steel, it can easy to control and manage
Full automatic cage suitable for a large number farming with high profit. The advantages are efficient management of farms and reduced workforce
Broiler chicken cage size
| Product name | H type broiler cage |
| Pullet cage size | 1.4m by 1m by 1.9m |
| Tiers | 3 tiers |
| Capacity | 84 birds |
| Each chicken covers area | 500 cm² |
| Surface treatment | Hot galvanized |
| Lifespan | 25 years |
| Support system | Automatic feeding system, automatic drinking system, automatic manure cleaning system, environment control system |
Frame and cage
1. Punching from the hot dip galvanized steel panels, zinc coating 400 g/m2, no welding, all fixed by screws
2. Surface treatment of cage wire mesh are hot dip galvanized, the thickness of the Zn-coat is about 400 um, and the corrosion resistance is 3-4 times of usual surface treatment
Automatic feeding system
1. Main feed transport pipe connected with silo
The material of the pipe: PPR pipe
The diameter of the pipe: Ф90 mm
Auger: import from South Africa
2. Feeding trolley
The material of the feeding trolley is hot dip galvanized steel to ensure no rust.
3. Feeding trough
Two kinds of raw materials for feeding trough are available: PVC or galvanized steel
Automatic manure removing system
1. The system adopts belt type horizontal transmission of chicken manure. It can convey manure out of chicken house and to truck automatically
2. The manure conveying belt is made of high strength PP composite with friction resistance and corrosion resistance. It has long lifespan which is not easy to be deformed
3. The width of the chicken manure conveying belt is 44 cm
