A Type Full Automatic Chicken Cage Equipment For 20,000 Capacity Poultry Farm Sandy

Product Description

A Type Full Automatic Chicken Cage Equipment For 20,000 Capacity Poultry Farm Sandy

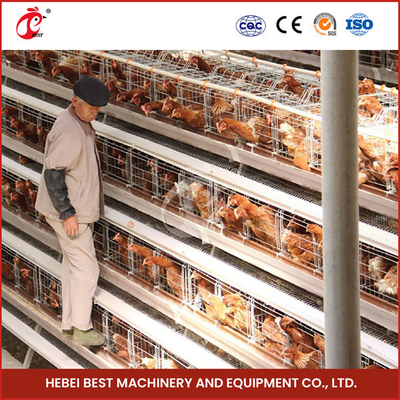

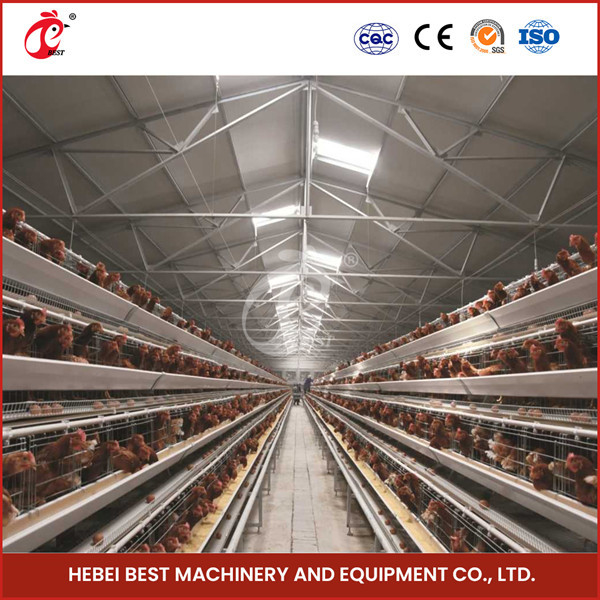

Introduction of automatic layer cage system
1. It is used to keep small layers from 12-16 weeks old to adult
2. It separate manual cage, semi automatic chicken cage and automatic layer cage
3. Automatic cage include cage mesh, feeding machine, egg collection machine, silo, manure removal machine

Specifications of automatic chicken cage equipment

Advantage of automatic equipment
Automatic hopper feeder
1. It is uniform-for feeding to ensure that the chicks eat the feed uniformly and are high in weight uniformity
2. The feed distributor can re-fresh the feed to ensure that there is no feed accumulated or no “Stale” feed
3. It has low energy consumption during running and low maintenance rate
4. The feed box is separated from the trough or in contact with plastic parts, so as to effectively avoid the trough from wear

Automatic manure removal machine
1. It is combined with manure belt, frame, roller, terminal lateral conveyor belt and oblique conveyor belt
2. Chicken drop manure to the manure belt under the every tier of cage bottom mesh
3. The belt transfer manure to terminal lateral conveyor belt with scraper in the end of every row of cages inside of chicken house
4. Then delivery to the oblique conveyor belt outside of the chicken house, truck accept the manure from the oblique conveyor belt

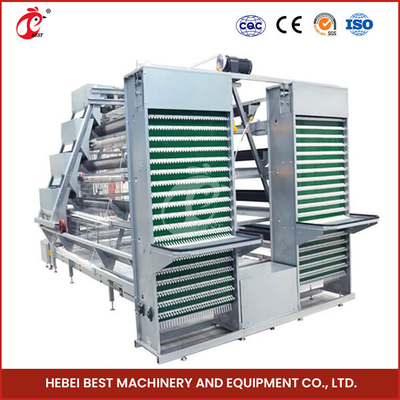

Automatic egg collection machine
1. It is combined with egg collection belts, terminal egg conveyor lifting system and egg conveyor system
2. Chicken drop eggs to bottom mesh and egg rolls to egg belt, egg belt delivery all eggs to terminal egg conveyor lifting system inside of chicken house,
3. Then to egg conveyor system fixed in outside of all poultry houses and connected egg conveyor lifting systems in all poultry house to a line, eggs are delivered to the egg storage room at last

Silo for stock feeds for chicken
1. It is used to store chicken feed
2. Capacity can be 5 tons, 10 tons, 15 tons, 20 tons
3. The steel pipes with the spiral augers delivers the feed from the silo outside the chicken house to the feeding pipe and hopper inside the chicken house

BEST company service
1. Service: The team of 30 people, the design of the project, combined with our farm technical adviser to the overall budget and the breeding scheme, Such as according to customer’s farm land size design scheme, from office to poultry house and so on all working area. More than 20 technician, install after order, debug machine, visiting farm once a year, check and maintain all equipment line
2. Delivery: Full or less container by sea, packed by wooden pallets, boxes, plastic wraps
3. Installation: We supply to you the detailed instructions and steps of pictures or videos by email or express delivery, you supply to your farm manager and workers or send installation engineer to you
